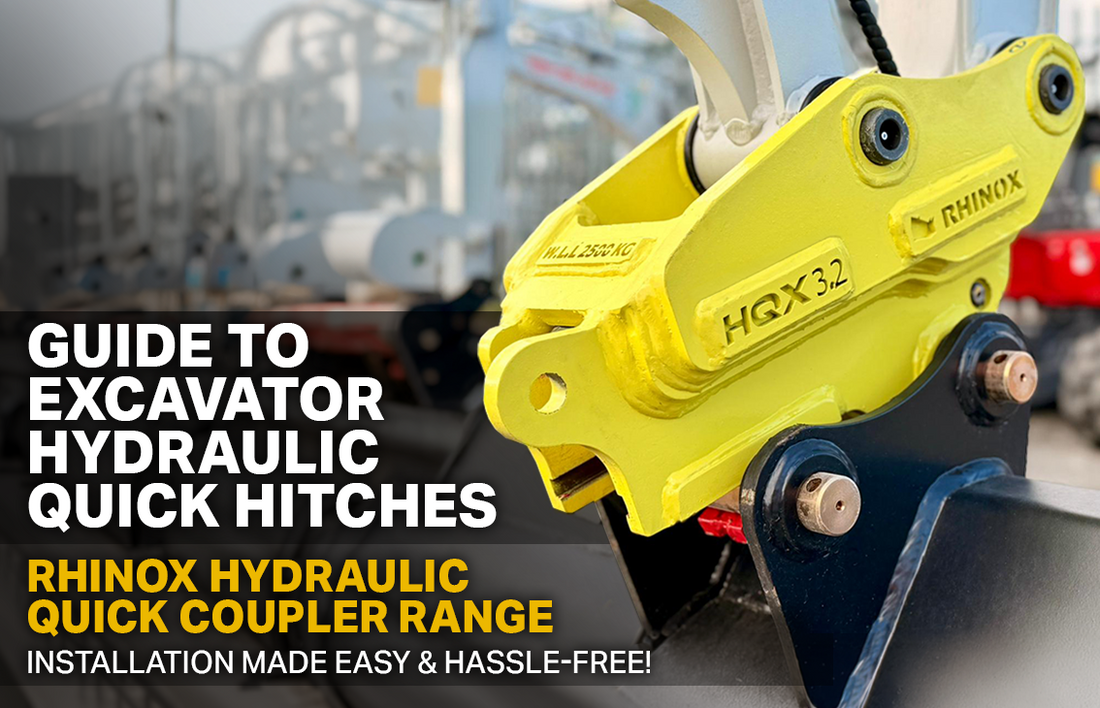

Guide to Excavator Hydraulic Quick Couplers
Mini diggers and excavators are only as versatile as the attachments they can use - and swapping between them efficiently can make all the difference on a job site. That’s where hydraulic quick couplers come in. These time-saving devices allow operators to change attachments quickly, safely and without leaving the cab. In this guide, we’ll walk you through how hydraulic quick couplers work, how to ensure your excavator is compatible, and the standout features of Rhinox Hydraulic Quick Couplers that make them a reliable choice for professionals.
- What is a hydraulic quick coupler?
- How does a hydraulic quick coupler work?
- How do I know if my excavator is compatible?
- Features of the Rhinox Hydraulic Quick Coupler
- Steel Grade & Material Quality
- Inbuilt Safety - Our Twin-locking Mechanisms
- Dedicated Fitting Guides & Installation
- Safe Lifting - Lifting Eye Ratings
- Quality & Confidence - 2 Year Warranty
- Service & Maintenance
- Purchasing your Rhinox Hydraulic Quick Coupler
What is a Hydraulic Quick Coupler?
An excavator hydraulic quick coupler is a tool that lets operators swap attachments on a mini digger or excavator quickly and easily. A hydraulic coupler uses hydraulic power to securely attach and dettach excavator attachments, such as buckets, landscaping rakes and concrete buckets, without the need for manual intervention. Hydraulic quick hitches are designed to be operated from the comfort of your cab, enhancing safety by reducing the need for operators to manually handle or mount heavy attachments. Quick couplers also increase operational efficiency by minimising downtime between attachment changes, so you can spend more time 'doing'.
How does an Excavator Hydraulic Quick Coupler work?
Hydraulic quick couplers make mini diggers and excavators far more efficient by allowing operators to change attachments quickly and safely without leaving the cab. The hydraulic coupler connects to the excavator’s hydraulic system, using pressurised oil to lock and unlock the latch that secures the excavator attachments in place. With the push of a button or flick of a switch, the hydraulic force activates the internal locking mechanisms, opening or closing the latches to secure the hitch firmly onto the pins. Built-in safety features like secondary locking systems, often referred to as a “deadlock” latch, helps ensure the attachment is properly secured before use. Learn how to use a hydraulic quick coupler on a mini digger or excavator.
How do I know if my excavator is compatible with a Hydraulic Quick Coupler?
To check whether your mini digger or excavator is compatible with a hydraulic quick coupler, start by confirming the make and model or pin dimensions of your excavator - the coupler must match these measurements exactly to fit securely. You’ll also need auxiliary hydraulics available on the dipper arm, as hydraulic quick couplers require a dedicated hydraulic line to operate the locking mechanism from the cab. It’s important to verify that your excavator’s hydraulic pressure and flow meet the coupler manufacturer’s requirements. In some cases, additional hoses, electrical fittings or in-cab control switches may be needed, if they’re not already installed. Checking your machine’s specifications or consulting a coupler supplier like Rhinox, can help ensure everything is compatible before purchase and installation. Contact Rhinox today for hydraulic quick coupler advice.
More about fitting a hydraulic quick coupler:

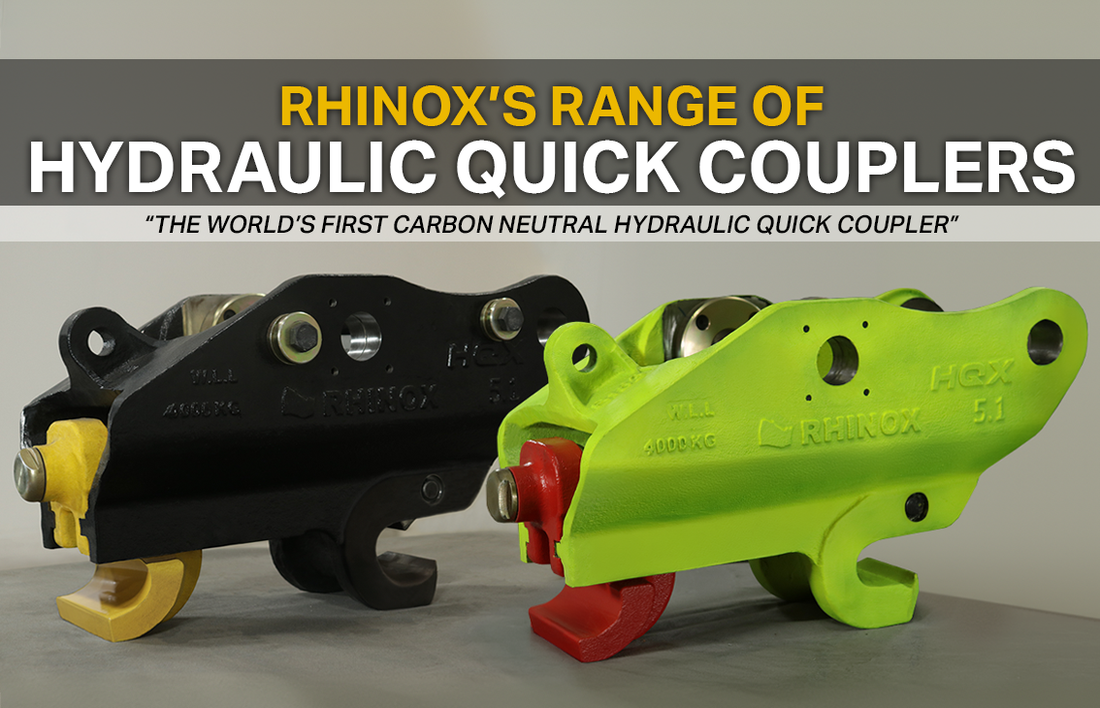

Features of the Rhinox Hydraulic Quick Coupler

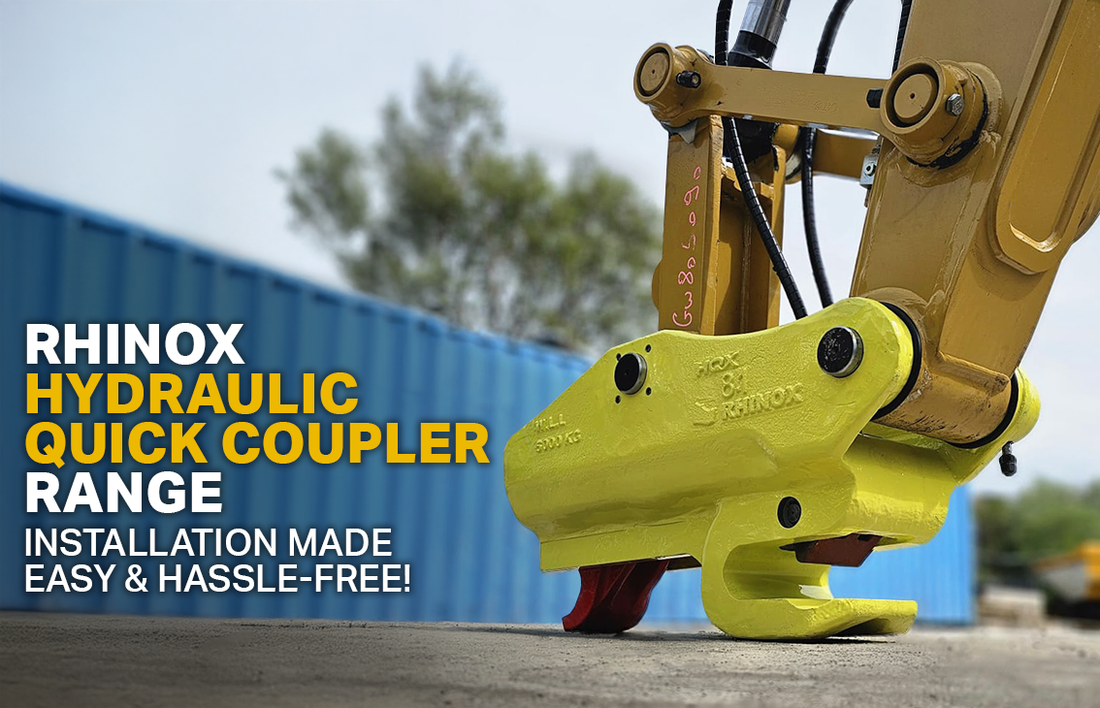

Rhinox Hydraulic Couplers are available for a variety of mini digger and excavator makes and models across the market, ranging from 1.5 ton mini diggers up to 9 ton midi excavators. We're continuously working to develop new makes, models and tonnages. Rhinox Hydraulic Quick Couplers (HQX) are Patent Pending - GB2635013A
Strength & Durability - Steel Grade & Material Quality
The Rhinox Hydraulic Quick Coupler is made from a combination of machined-steel and cast-steel components. The main coupler body of our fabricated hydraulic quick hitches is an assembly of solid steel plates welded to together to create one solid structure. The lower half of the coupler, known as the pickup plates, and the rear latch are hardened to HB500 for maximum wear resistance. These components are continually subject to contact with other equipment, usually bucket pins when changing your attachments, which can cause wear over time. For this reason, we manufacture from high-strength, hardened steel to withstand this repeated contact and provide long-lasting performance.
The front hook, deadlock latch is manufactured from cast steel, providing the high strength and wear resistance required for a component that moves every time the hitch is locked and unlocked. Using cast steel allows us to add hardening additives during the melting process, enhancing the strength and long-term durability of the latch. This ensures it can withstand the repeated operation during attachment attachments.
Inbuilt Safety Features - Twin-locking Mechanisms
For maximum safety during operation, the Rhinox Hydraulic Quick Coupler has been designed and manufactured with numerous inbuilt safety features. The Rhinox Hydraulic Hitch features a twin-locking mechanism which secures the front and back pin of your attachment in place while in use. The locking rear latch locks the rear attachment pin into the latch, with the oversized coil spring providing a positive pressure on the latch when engaged to ensure the latch remains closed. The curved front hook features a 'deadlock' latch which is designed to lock the front attachment pin into the front hook to avoid unsafe ejection during operation. The curved front hook also features a pin pocket, which helps secure the attachment pin and minimises the risk of the attachment sliding away during connection.
"a twin locking coupler fully compliant to ISO13031 and EN474-1"
Your Rhinox Hydraulic Coupler is also fitted with a built-in, hydraulic check valve, which maintains pressure in the hitch in the event of a hydraulic system failure - such as a disconnected hydraulic hose. Without this feature, there's a higher chance that your attachment could disconnect unexpectedly, potentially leading to damage or injury to equipment or nearby groundsman.
Dedicated Fitting Guides & Installation Kits
Benefits to Excavator Owners & Operators
When you buy a Rhinox Hydraulic Quick Coupler, you get more than just a quick hitch. We aim to make upgrading your excavator as simple and hassle-free as possible, with free installation within 2 weeks (subject to availability), machine-specific fitting kits for straightforward installation, and expert technical advice. We're here to help you get up and running quickly and keep your machine working efficiently.
Free Installation Within 2 Weeks
Purchase your Rhinox Hydraulic Quick Coupler directly through our website or by contacting our team, and benefit from free installation within 2 weeks (subject to availability). Our dedicated network of fitters will take care of your quick hitch installation for you, saving you the time and hassle of arranging a fitter or tackling the installation yourself. That means you can enjoy a hassle-free fitting process and get your excavator ready for the next job as quickly as possible.
A Straightforward Installation Process
Whether we install your Rhinox Hydraulic Coupler for you or you choose to complete the fitting yourself, we make the process as simple as possible. That's why every Rhinox Hydraulic Quick Coupler is supplied with a fitting kit specifically designed for your mini digger or excavator's make and model, ensuring you have the correct components, the perfect hose lengths and no unnecessary spare parts. Each kit also includes a detailed, step-by-step fitting guide and technical drawing pack, showing you exactly where each component goes and how everything fits together. With the right parts and clear instructions, installation is simple, helping get your excavator back to work as quickly as possible.
Expert Technical Advice When You Need It
If you need technical advice installing your Rhinox Hydraulic Quick Coupler or encounter an issue during operation, our technical support engineer is available Monday to Friday to provide expert advice and troubleshooting support. Whether you need guidance during fitting or help diagnosing an operational issue, reach out to us directly - we're here to help you get your coupler working correctly and minimise unnecessary downtime.
Benefits to Excavator Dealers & Plant Fitters
As we're sure you're aware, excavators come in a huge variety of makes and models, and factory pipework differs significantly from machine to machine. That means a standard, one-size-fits-all hydraulic quick hitch fitting kit often causes problems - hoses that are too long, components that don’t fit, or vital parts missing altogether. If you’ve ever started installing a hydraulic coupler only to realise you can’t complete the job, or been left waiting weeks or even months for replacement parts, you know how costly and frustrating that can be. That’s why Rhinox Hydraulic Quick Coupler dedicated fitting kits are specifically designed for the excavator’s exact make, model and pipework. Every component is the correct specification, length and fit.
Each Rhinox fitting kit includes everything the machine needs for a smooth, hassle-free installation: hydraulic hoses, electrical connectors, fittings and any additional components like solenoid valve assemblies and pressure switches. All connectors are colour-coded and clearly labelled, so you always know which parts go together, reducing the chance of mistakes and saving valuable time.
To make installation even easier, each fitting kit comes with a clear, step-by-step fitting guide and technical drawing pack. These aren’t vague or hard-to-read diagrams - they’re fully labelled, showing exactly where each component should go and the best way to install it. Alongside this, the fitting kit is organised into labelled bags corresponding to each step of the guide, so you never have to dig through a box hunting for the right part. For example, Bag 8 contains the complete solenoid valve kit - everything you need for that step, all in one place. Check out a full overview of a Rhinox Hydraulic Quick Coupler fitting kit.
If you ever need replacement parts during fitting, all in-stock components are available for same-day dispatch with delivery in 1-2 business days, so downtime is kept to an absolute minimum. With a Rhinox fitting kit, you get the confidence of everything you need, perfectly fitted and ready to go. No guesswork, no missing parts, and no delays.
Safe Lifting - Lifting Eye Ratings
Rhinox Hydraulic Quick Couplers are manufactured with LOLER-rated lifting eyes and come with a certificate of conformity to support the LOLER testing. Depending on the coupler size, your Rhinox Hydraulic Quick Coupler will be LOLER rated between 800kg and 5,000kg. For easy reference, the working load limit of your specific coupler is clearly outlined on the data plate, located on the inside of the coupler body. It is also marked on the outside of the coupler body for a quick reference when required.
How many lifting eyes does a Rhinox Hydraulic Quick Coupler have?
The number of lifting eyes will vary depending on the size and lifting capacity of your excavator. Rhinox 1.5 to 3 ton hydraulic couplers are equipped with one lifting eye, while our 5 to 9 ton hydraulic couplers are equipped with two lifting eyes. This is due to the increased working load limit (W.L.L) of larger excavators.
Quality & Confidence - 2 Year Warranty
We understand the demands of busy jobs sites, which is why our quick hitches are built to perform in tough working conditions. We stand behind the quality and reliability of our hydraulic couplers, giving you confidence in your excavator and hitch, and peace of mind throughout every hour of operation. That's why all Rhinox Hydraulic Quick Couplers come with an optional FREE 2 year warranty. This is our way of helping you protect your investment and giving you added reassurance should a manufacturing error occur.
Please note: All Rhinox Hydraulic Quick Couplers must be registered on our website prior to use to ensure your 2 year warranty is valid. If you have purchased your quick coupler through a dealer, do not assume your coupler has been register for you. Register your Rhinox HQX Hydraulic Quick Coupler for free now.
Smooth Operation - Service & Maintenance
Every Rhinox Hydraulic Quick Coupler comes with a user manual with inspection record sheet, in-cab instruction sticker, and two dipper arm safety stickers to help you operate and maintain your coupler safely and efficiently.
Keeping your downtime to a minimum is important which is why we have designed the Rhinox Hydraulic Quick Coupler with a one-piece hydraulic assembly. This simple design keeps inspection and servicing times to under an hour with a full assembly and disassembly time of around 15 minutes. This hydraulic system requires minimal upkeep and has no greasing requirements which makes maintenance quick and simple.
If you require replacement parts for installation or servicing, all of our in-stock coupler components are available for same-day dispatch, with delivery in just 1-2 business days. This helps you minimise downtime and keep your machine working efficiently.
More about Rhinox Hydraulic Quick Couplers:
Purchasing your Rhinox Hydraulic Quick Coupler
If the Rhinox Hydraulic Quick Coupler is something you're interested in, order online on our website today or get in touch and one of our team will be happy to help you out! You can also purchase a Rhinox Hydraulic Quick Coupler with your excavator when purchased through a machine dealer. To do this, contact your local excavator dealer and express your interest with them. We are collaborating with dealers across the UK to ensure that you can get your Rhinox Hydraulic Quick Coupler as quickly and smoothly as possible. If you're unsure who your local dealer is, give us a call and we will help guide you in the right direction so you can get your HQX as quickly as possible.
