WHAT IS THE DIFFERENCE BETWEEN A DIGGING BUCKET AND AGRADING BUCKET?

A digging bucket, also known as a general-purpose bucket, is designed to penetrate and break through soil, clay, gravel and other compact material, making it ideal for general excavation and earthmoving work, as well as digging trenches for utilities, foundations and other similar projects. A grading bucket is typically wider and has a smooth edge, making it ideal for levelling and shaping surfaces, usually after the main digging work has been completed. In simple terms, use a digging or general purpose bucket for excavation, and a grading bucket for finishing and ground levelling.

WILL AN AFTERMARKET BUCKET FIT MY EXCAVATOR?

Yes, an aftermarket excavator bucket can fit your machine, provided the bucket is correctly matched to your excavator’s make, model and pin dimensions. Rhinox excavator buckets are available for a wide range of mini diggers and excavators, but it is important to check your pin diameter, pin centres and dipper gap before ordering to ensure the bucket will fit correctly. If you are unsure which bucket is right for your excavator, check out our machine selection tool or contact us directly for assistance.

WHAT MEASUREMENTS DO I NEED WHEN ORDERING AN EXCAVATOR BUCKET?

When ordering an excavator bucket or attachment, the key measurements you need are the pin diameter, pin centres and dipper gap. Taking accurate measurements before ordering will help you select the correct excavator attachment for your specific make and model. If your excavator has a quick hitch or other coupling system, you will need to know if your quick hitch picks up the pin dimensions of the bucket or attachment you're looking to buy. More information about measuring the pin dimensions of your excavator or quick hitch.

WHEN SHOULD EXCAVATOR BUCKET TEETH BE REPLACED?

Excavator bucket teeth should be replaced when they become worn, rounded or damaged. For standard bolt-on bucket teeth, this means when the serrations have worn away, the tooth has become noticeably rounded, or the tooth has snapped.For CAT-style teeth, replace the tooth when the serrations have worn away, the tooth has become rounded, or a hole becomes visible through the top of the tooth. This is particularly important as it indicates the tooth has worn back far enough to expose the adaptor underneath. If the adaptor begins to wear, it can lead to costly repairs, as it is welded to the bucket and cannot be easily replaced.Worn teeth will reduce digging performance and make it harder for the bucket to penetrate tough ground. Continuing to use excessively worn bucket teeth can also put additional strain on the bucket and excavator. Regularly inspect the teeth during use and replace them when they have lost their original profile or are noticeably affecting digging performance.

Volvo EC45 Pro Digging Bucket - 12" / 300mm

Pick-up Dimensions: (mm)
Pin Diameter	45
Dipper Gap	160
Pin Centres	220

Not the dimensions you expected?
SEARCH BY PIN DIMENSIONS

Weight & Capacity
Weight	90.62 KG
Capacity	0.06 Cubic Metres

DOWNLOAD PDF

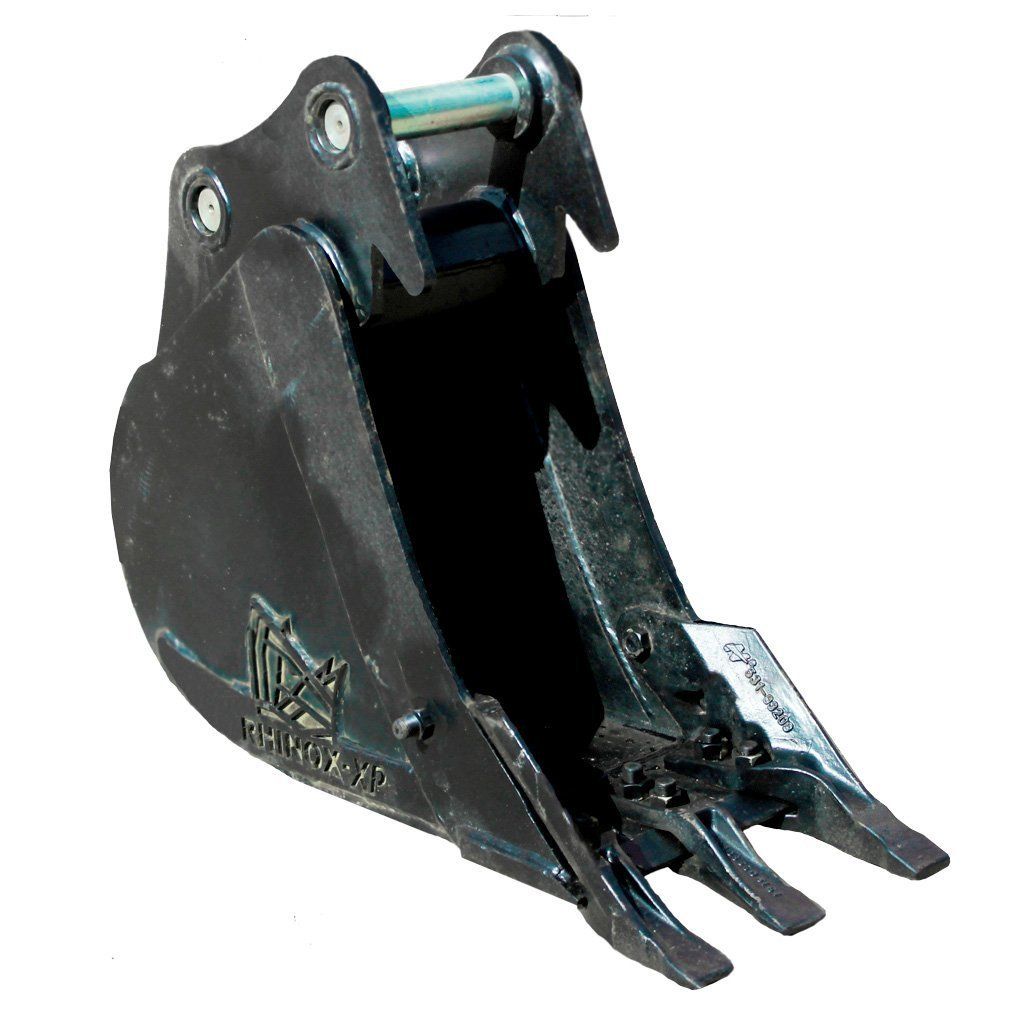

Rhinox high quality 12" / 300mm digging bucket to fit a?Volvo EC45 Pro mini digger

These buckets come fitted with teeth as standard, and also includes our Bucket Hooks on the front of the hangers to make transportation very easy!

This bucket comes fitted with Pins.

▶ See it in action

Mainland UK

Weight	Standard Next Day	AM Next Day
0-25kg	£18.00 Exc. VAT	£25.00 Exc. VAT
26-55kg (Half Pallet)	£35.00 Exc. VAT	£40.00 Exc. VAT
56-500kg (Pallet)	£60.00 Exc. VAT	£80.00 Exc. VAT
56-500kg (Pallet - Tail Lift Delivery)	£70.00 Exc. VAT	£90.00 Exc. VAT
500kg+ Or Oversize Pallet	£80.00 Exc. VAT	£130.00 Exc. VAT

Please Note, Any orders placed after 3pm may not be processed till the next working day, However Rhinox Group endeavour to ship all stock items ordered before 4pm on the day of order. Items that are built to order are stated within the description of the product. The prices are based on the total weight of the items you are ordering.

For shipping prices outside of the Mainland UK, an accurate price will be calculated once you have entered your delivery address in at the checkout stage.

UK Shipments:

Shipments within the UK are usually despatched on a Next Day service as standard, so should be delivered 1 working day after despatch.

If you pay for a premium service at Checkout, we will upgrade the shipment to the service level paid for.

All shipments are undertaken by reputable UK carrier systems, but on rare occasions due to unforseen circumstances there can be delays in the delivery time. Rhinox Group will work with you in any situation where this arises, to resolve it to the best of our capabilities.

International Shipments:

Shipments outside the UK are despatched using reputable logistic partners, such as FedEx. Approx lead times are given at point of checkout, but due to longer distances, and customs controls etc these times can be subject to change.

If you have any queries relating to your order/delivery, please contact our customer service team on 01430 259 259 stating your company name, order date and order reference.

Pick-up Dimensions: (mm)
Pin Diameter	45
Dipper Gap	160
Pin Centres	220

Not the dimensions you expected?
SEARCH BY PIN DIMENSIONS

Weight & Capacity
Weight	90.62 KG
Capacity	0.06 Cubic Metres

Weight & Capacity
Weight	80.78 KG
Capacity	0.06 Cubic Metres

DOWNLOAD PDF

Rhinox high quality 12" / 300mm digging bucket to fit a?Volvo EC45 Pro mini digger

These buckets come fitted with teeth as standard, and also includes our Bucket Hooks on the front of the hangers to make transportation very easy!

This bucket comes fitted with Pins.

▶ See it in action

Mainland UK

Weight	Standard Next Day	AM Next Day
0-25kg	£18.00 Exc. VAT	£25.00 Exc. VAT
26-55kg (Half Pallet)	£35.00 Exc. VAT	£40.00 Exc. VAT
56-500kg (Pallet)	£60.00 Exc. VAT	£80.00 Exc. VAT
56-500kg (Pallet - Tail Lift Delivery)	£70.00 Exc. VAT	£90.00 Exc. VAT
500kg+ Or Oversize Pallet	£80.00 Exc. VAT	£130.00 Exc. VAT

Please Note, Any orders placed after 3pm may not be processed till the next working day, However Rhinox Group endeavour to ship all stock items ordered before 4pm on the day of order. Items that are built to order are stated within the description of the product. The prices are based on the total weight of the items you are ordering.

For shipping prices outside of the Mainland UK, an accurate price will be calculated once you have entered your delivery address in at the checkout stage.

UK Shipments:

Shipments within the UK are usually despatched on a Next Day service as standard, so should be delivered 1 working day after despatch.

If you pay for a premium service at Checkout, we will upgrade the shipment to the service level paid for.

All shipments are undertaken by reputable UK carrier systems, but on rare occasions due to unforseen circumstances there can be delays in the delivery time. Rhinox Group will work with you in any situation where this arises, to resolve it to the best of our capabilities.

International Shipments:

Shipments outside the UK are despatched using reputable logistic partners, such as FedEx. Approx lead times are given at point of checkout, but due to longer distances, and customs controls etc these times can be subject to change.

If you have any queries relating to your order/delivery, please contact our customer service team on 01430 259 259 stating your company name, order date and order reference.

DIGGING BUCKETS

HIGH-PERFORMANCE

TRUSTED BY THOSE WHO DIG

From landscapers and owner-operators to groundworks and plant hire, Rhinox Digging Buckets are trusted by people who rely on their mini diggers and excavators every day due to the robust design, rapid delivery and exemplary customer support when it's needed.

GUARANTEED TO FIT. BUILT TO LAST

Every Rhinox Digging Bucket comes with our Machine Fitment Guarantee and Lifetime Weld Guarantee, giving you confidence that your excavator bucket will fit your machine and will perform efficiently hour after hour.

DIGGING BUCKETS

KEY FEATURES

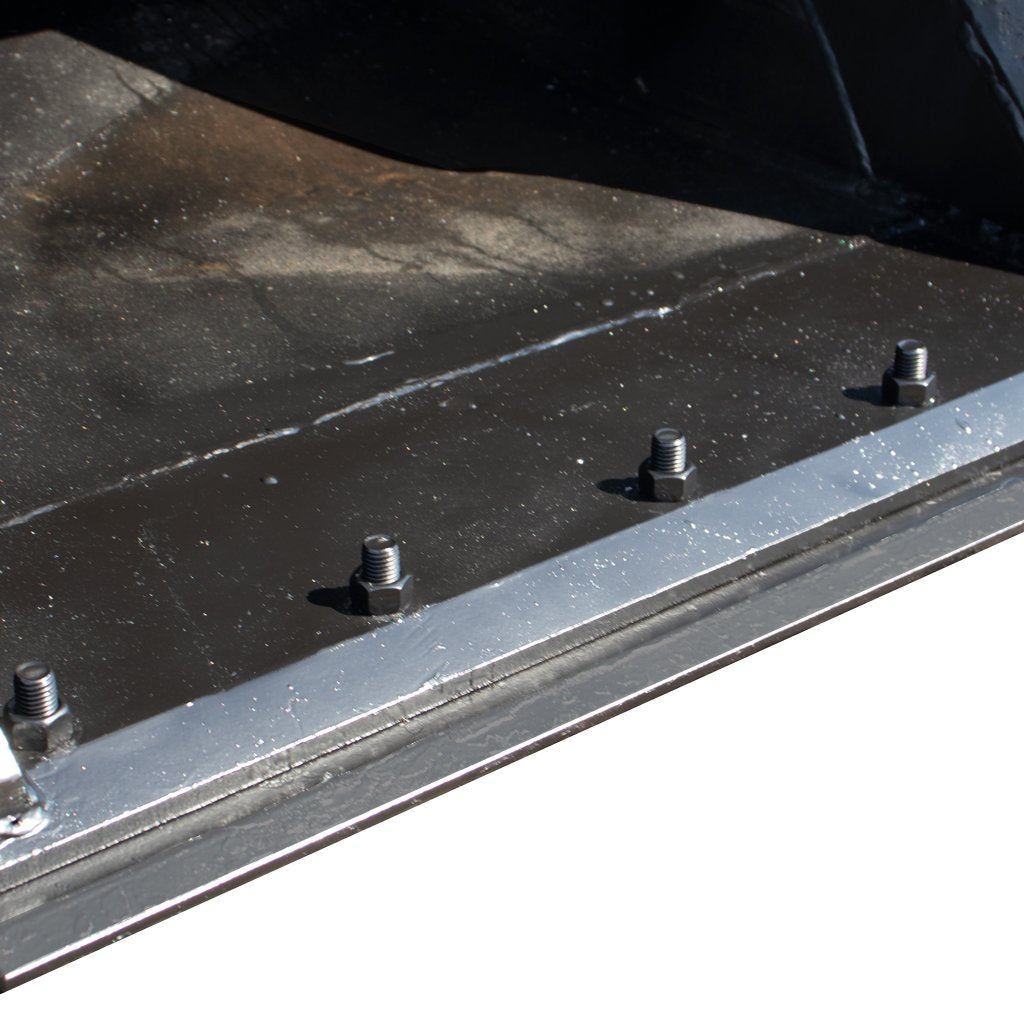

HARDENED STEEL CUTTING EDGE

The digging bucket cutting edge, or lip plate, experiences the most wear during use. That’s why we heat-treat the steel to increase its hardness and resistance to wear, helping extend the life of your Rhinox Digging Bucket.

SIDE CUTTER PROTECTION

Rhinox Digging Buckets feature cast steel, side cutters to improve the wear resistance and durability of the lower sections of your leading edges.

CUTTING EDGE OPTIONS

Your Rhinox Digging Bucket is available with a range of cutting edge options to best suit your job and preferences. From standard bucket teeth to bolt-on blades for a smooth cutting edge.

BUCKET TRANSPORT HOOKS

Built-in transport hooks make lifting and moving your buckets safer and easier, whether you’re moving around site or loading onto a trailer or flatbed for transport.

UK'S Market-Leading

Bucket

Manufacturer

With over 30 years of industry experience, we keep excavators and telehandlers moving across the globe. Whether you are a Plant Hire giant or an Owner-Operator, we deliver the best-performing products on the market - straight from our shelf to your site.

30

Years in the Industry

20,000+

Products in-Stock

1

Standard of Excellence

SKU : 5C12-T-PN

Volvo EC45 Pro Digging Bucket - 12" / 300mm
